Ponderosa/Bailey Hydroelectric Project

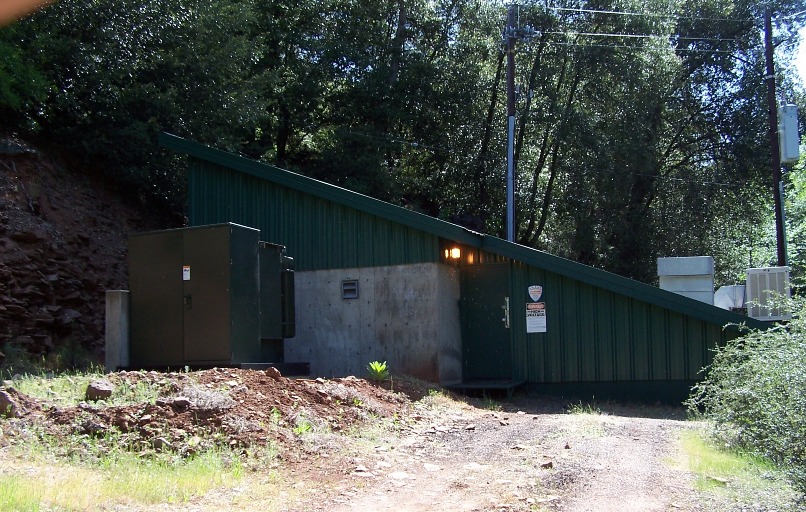

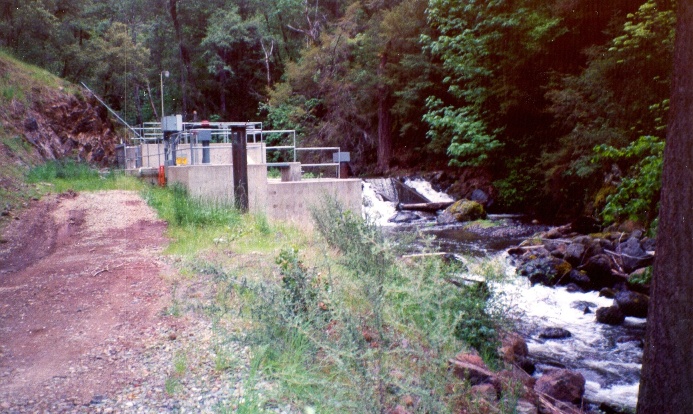

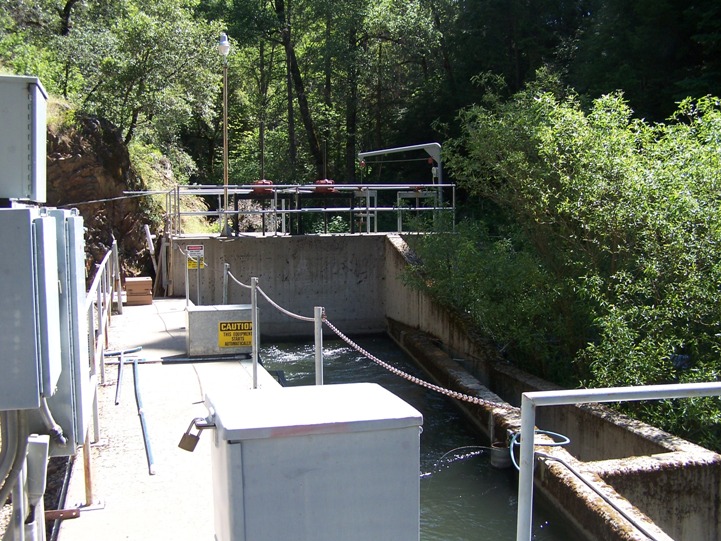

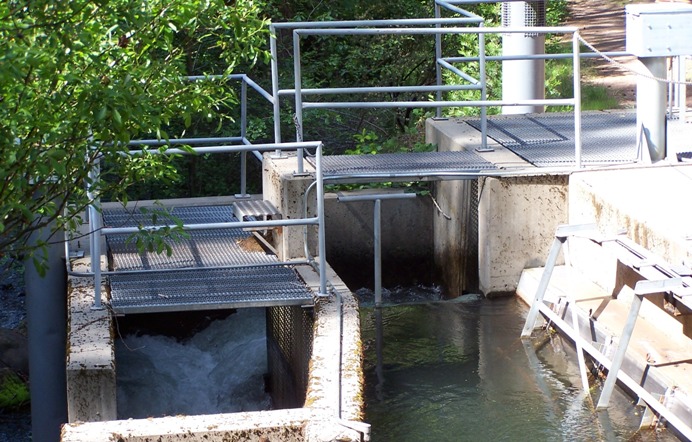

The Ponderosa/Bailey project is a run of river project located on Bailey Creek south of Shingletown in eastern Shasta County, California. The project consists of a 1.1 MW capacity powerhouse at the end of a 6,500 foot long, 42 inch diameter steel penstock. Hydraulic capacity is 60 cfs and the gross head is 281 feet. The water is diverted into the penstock at a weir and intake structure at the edge of Bailey Creek. The intake structure includes a fish screen and automatic screen cleaner.

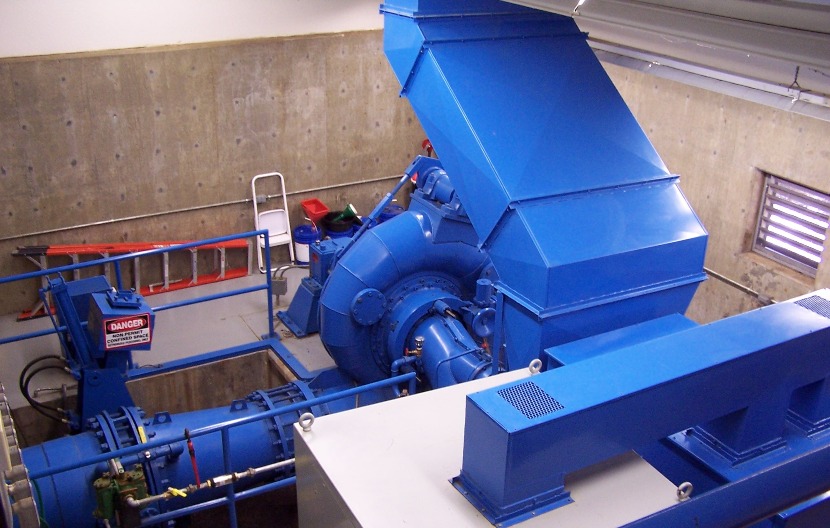

The turbine-generator is a horizontal shaft double-Francis style turbine with a synchronous generator. Transmission to the intertie with PG&E is via a 0.3 mile long 12kV transmission line.

Project operation began in January 1990. Power is sold to Pacific Gas & Electric Company under a 30 year contract. The owner is Snow Mountain Hydro LLC, in which Ida-West Energy Company owns, indirectly, a 50 percent interest. Operation and maintenance is performed by Ida-West Operating Services, Inc.
